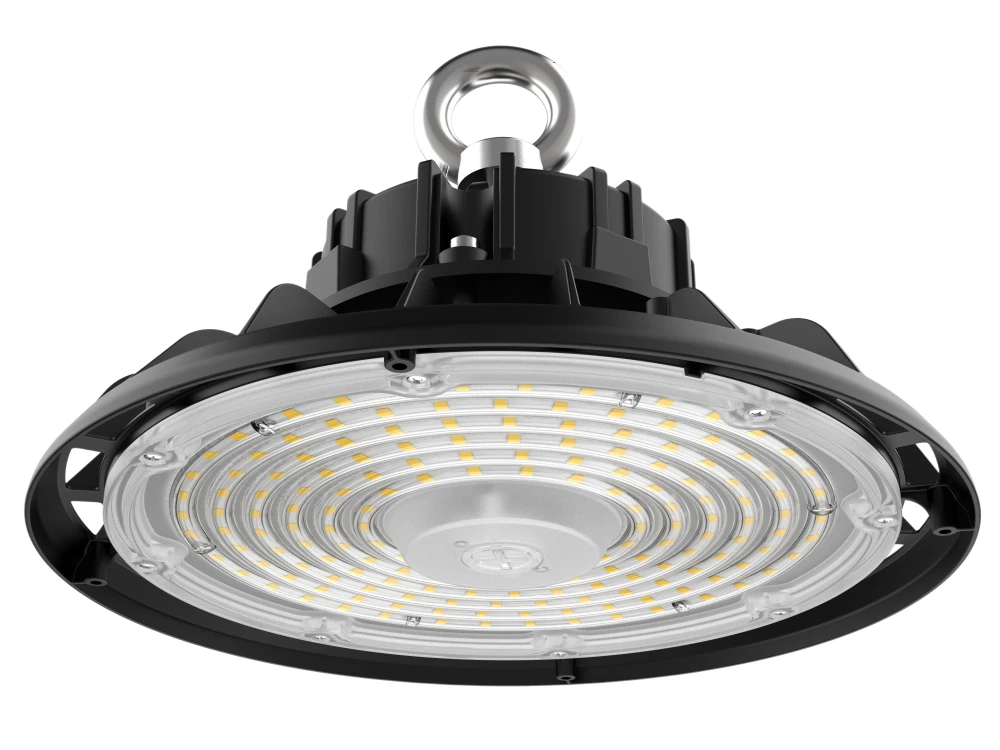

HB01 LED High Bay Light

Low-glare UFO high bay lighting designed for warehouses, manufacturing facilities, gymnasiums, and other high-mounting-height applications where visual comfort, project flexibility, and sensor-ready control matter.

KEY SPECS

WATTAGE
100W-240W Field-Adjustable
Voltage
120–277V / 277–480V
MOUNTING
Eye Bolt Mount (Standard), Hook Mount, Yoke Mount
CCT
3500K / 4000K / 5000K Field-Adjustable
IP RATING
IP65, Wet Location
CERTIFICATIONS
UL / DLC Premium

PRODUCT OVERVIEW

The HB01 Series is designed to provide dependable illumination for warehouses, manufacturing facilities, distribution centers, gymnasiums, and similar commercial and industrial environments. Its concentric-ring polycarbonate lens helps reduce glare and improve visual comfort while delivering broad, efficient lighting coverage across large interior spaces.

Field-adjustable wattage and CCT provide greater flexibility for different project requirements, helping simplify product selection across a wider range of applications. An integrated 3.5mm motion-sensor receptacle allows plug-in installation of an optional motion sensor for additional lighting control when needed.

Constructed with a rugged die-cast aluminum housing and durable powder-coated finish, the fixture is rated IK08 for impact resistance and IP65 for protection against dust and moisture. Multiple mounting options are available to accommodate different installation conditions, while a range of optional accessories helps support various project requirements.

SPECIFICATIONS

Series Code
HB01
Wattage
100W-240W Field-Adjustable
Efficacy
150 lm/W
CCT
3500K / 4000K / 5000K Field-Adjustable
CRI
Ra ≥80
Beam Angle
90°
Input Voltage
120–277V / 277–480V
Power Factor
PF ≥0.95
Dimming
0-10V Dimmable
Control Options
Motion Sensor
IP Rating
IP65, Wet Location
IK Rating
IK08
Ambient Temperature (Ta)
-40°F to 113°F (-40°C to 45°C)
Certifications
UL Listed / DLC Premium (v5.1)
Lifespan (L70)
50,000+ Hours
Warranty
7-Year Warranty

MOUNTING & OPTIONS

MOUNTING OPTIONS:
Eye Bolt Mount (Standard) | Hook Mount | Yoke Mount
OTHER OPTIONS:
Emergency Battery Backup • Motion Sensor • Wire Guard • Aluminum Reflector • PC Reflector

TYPICAL APPLICATIONS

  • Warehouses
  • Distribution Centers
  • Manufacturing Facilities
  • Gymnasiums
  • Aircraft Hangars
