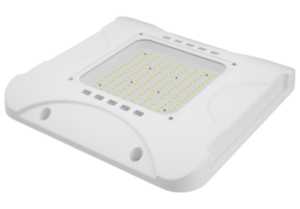

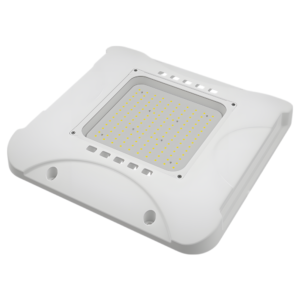

GS02 LED Gas Station Canopy Light

Reliable LED gas station canopy lighting designed for fueling stations, commercial canopies, and covered outdoor environments where high-output illumination, modern, clean integrated design, and long-term durability matter.

KEY SPECS

WATTAGE
100W /120W /150W Field-Adjustable
Voltage
120-277V
MOUNTING
Surface Mount, Pendant Mount
CCT
5000K
IP RATING
IP65, Wet Location
CERTIFICATIONS
UL / DLC Premium

PRODUCT OVERVIEW

The GS02 Series is designed for gas stations, fueling canopies, and other covered outdoor commercial applications requiring bright illumination, durable construction, and practical installation support. Its heavy-duty die-cast aluminum housing and built-in driver design contribute to a modern, clean integrated appearance while supporting easier installation and long-term reliability.

Built with a polycarbonate diffuser, the fixture helps provide more comfortable and uniform illumination for canopy environments. A corrosion-resistant powder-coated finish supports long-term outdoor durability, while field-adjustable wattage provides added flexibility for different project requirements.

SPECIFICATIONS

Series Code
GS02
Wattage
100W / 120W / 150W Field-Adjustable
Efficacy
130 lm/W
CCT
5000K
Beam Angle
90° / 120°
Lens
PC
Input Voltage
120–277V
Dimming
0–10V Dimmable
CRI
Ra ≥80
Power Factor
PF >0.95
IP Rating
IP65, Wet Location
Ambient Temp
-40°F to 113°F
Certifications
UL / DLC Premium (v.5.1)
Warranty
7-Year Warranty

MOUNTING & OPTIONS

MOUNTING OPTIONS:
Surface Mount | Pendant Mount
OTHER OPTIONS:
Field-Adjustable Wattage

TYPICAL APPLICATIONS

  • Gas Stations
  • Fueling Canopies
  • Convenience Store Canopies
  • Commercial Covered Walkways
  • Outdoor Service Areas
